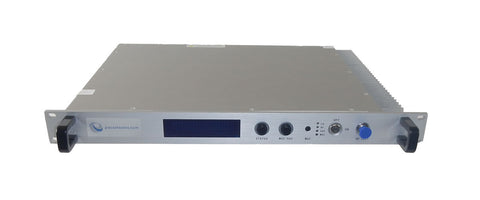

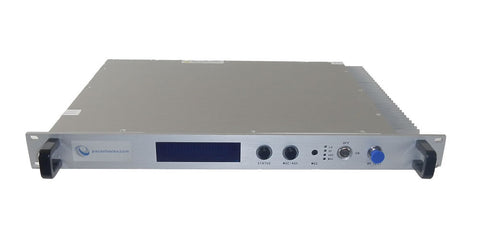

Contractor 16mW FTTX 1310nm CATV Fiber Transmitter w/AGC
Product Description
PacSatSales.com RMFT-16 series direct modulated 1310nm FTTx CATV transmitter adopts a high linearity DFB laser to build a perfect pre:distortion adjustment circuit with APC, ATC & AGC control. All the operating parameters of the transmitter are microprocessor controlled and the front panel LCD screen can display relative operating status and fault information.
The RMFT-16 series is designed and produced by incorporating the top features of several other
1310nm transmitters internationally. Highlights of the RMFT-16 transmitter include its high
index, multi-function controls and reliability making it suitable for many advanced applications.
Product Details
• Dual Module RF driver, high efficiency laser pre-distortion adjustment
• Full-automatic OMI control, AGC & MGC
AGC status, input level is between 14~28dBmV for optimum system index
MGC status, input range can be adjusted between 15~30dBmV by the ATT on front panel

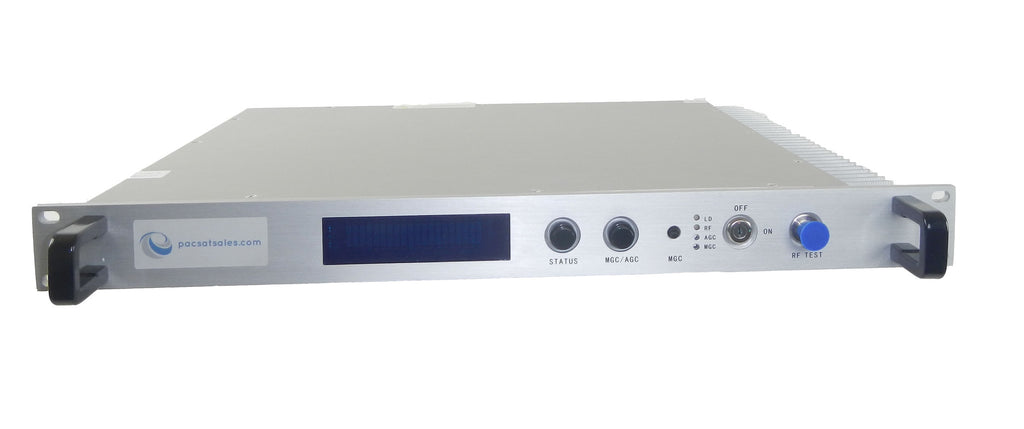

• Front panel has 20-grade OMI status display (Modulation Depth)
Under AGC status, within RF range, OMI is always at NOM status
Under MGC status, OMI can be at NOM status by adjusting ATT
• Built-in dual backup power supplies with automatic switching
• Auto-controlled temperature with readout to ensure laser longevity

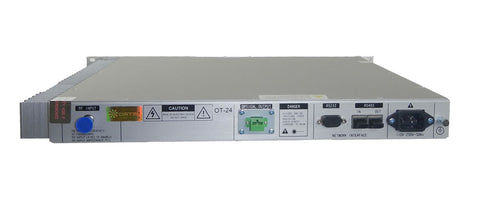

• Dual RF input port: Input & Test
• Generous RF input level 15~25dBmV
• CATV 45~862MHz operating bandwidth
• SC/APC fiber:optic connectors for easy FFTH/FFTB/FFTP fiber-node compatibility
• Dimensions: 19"W x 1.75"H x 13"D
• Weight: 9 lbs.
