This high quality, cost-effective 9/125μm single-mode simplex fiber-patch cable meets all RoHS compliances. Every jumper is optically tested for insertion loss to ensure their quality. Suitable for all networks including CATV type FTTH, FTTB and FTTP systems.

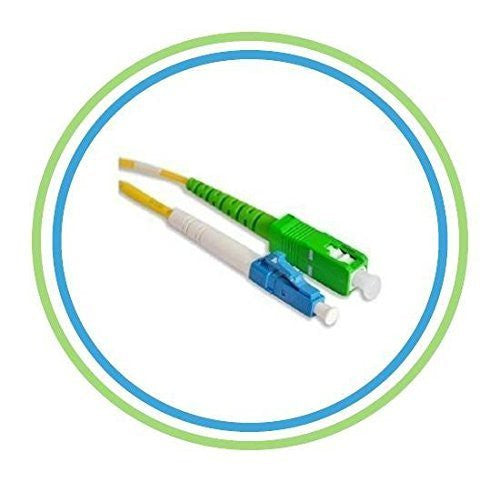

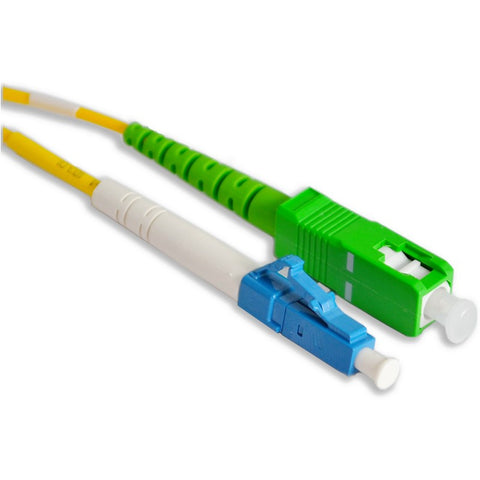

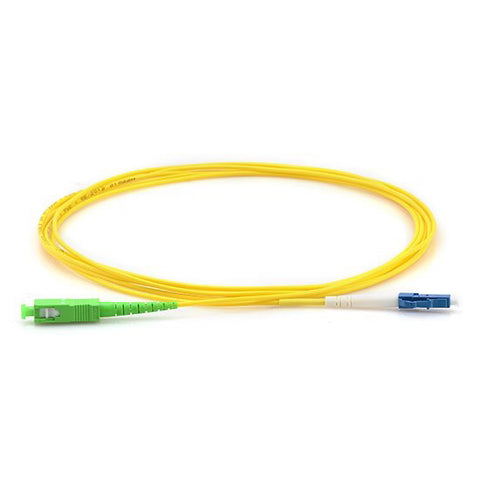

- Connector: SC/APC to LC
- Fiber Mode: 9/125μm
- Polish: UPC to APC
- Wavelength: 1310/1550nm
- Fiber Type: Simplex
- Insertion loss: LC UPC ≤0.2dB; SC APC ≤0.3dB
- Return loss: LC UPC ≥50dB; SC APC ≥60dB
- Interchangeability: ≤0.2dB
- Vibration: ≤0.2dB
- Operating temperature: -40~75℃
- Storage temperature: -45~85℃
- Jacket Material: PVC (default)/LSZH/OFNP
- Jacket Color: Yellow
- Jacket OD: standard 2.0 (default)/0.9/3.0mm
- Dimensions: 8" x 8" x 0.5"
- Weight: 8 oz.
